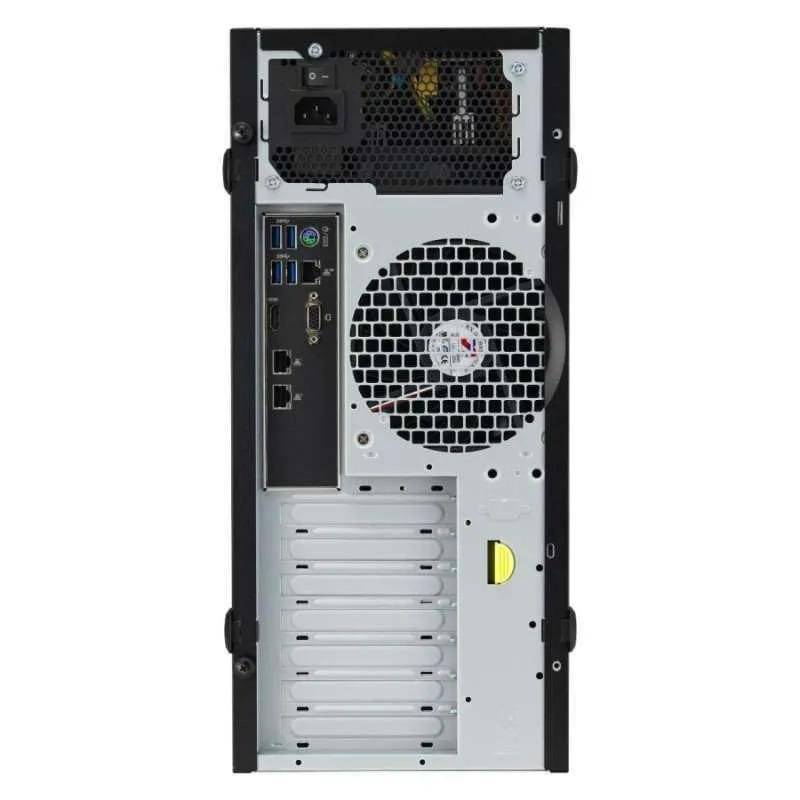

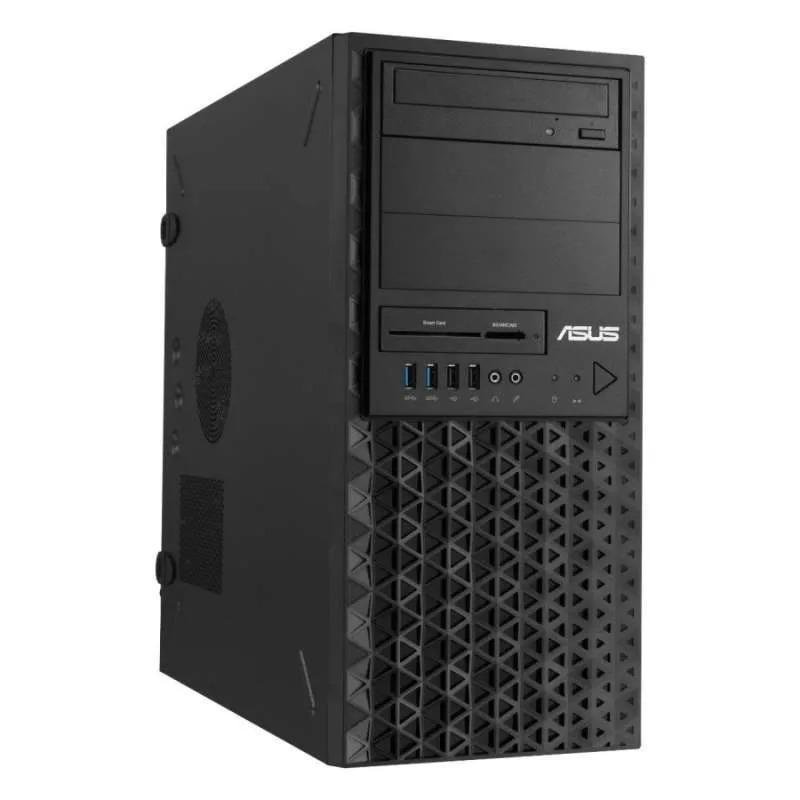

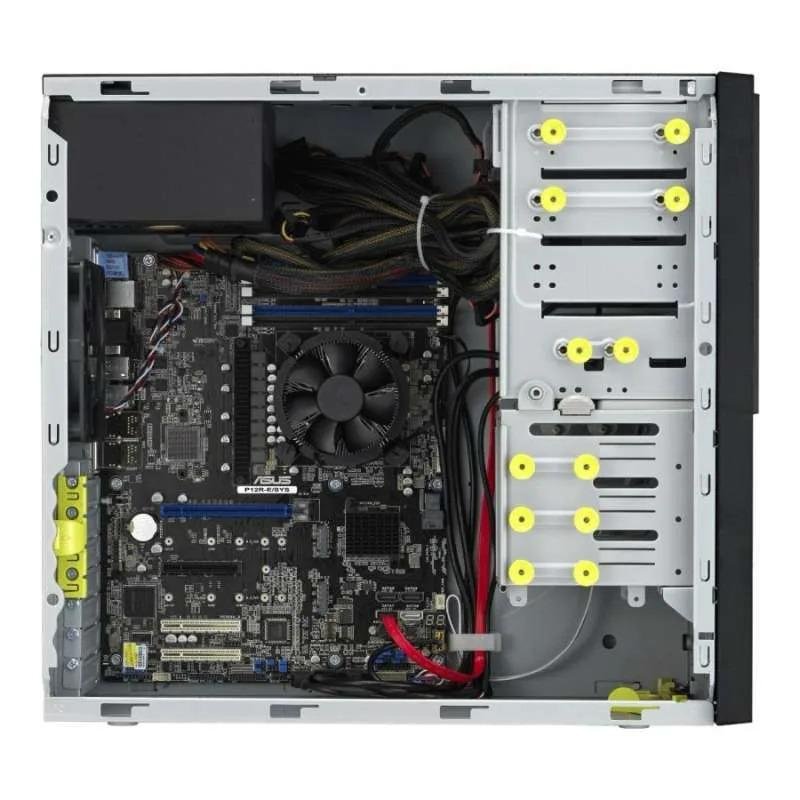

– Base : Asus Server TS100-E11-PI4
– Processor : 4C 4T Intel Xeon E-2324G Processor 8MB Cache, 3.1Ghz Turbo 4.6Ghz
– Intalled Memory : 8GB DDR4 ECC UDIMM
– Max. Memory : Up to 128GB (4 DIMM Slots)
– Total Slots Memory : 4 (2-channel per CPU)
– Internal Storage Controllers : Intel C256 (Support software RAID 0, 1, 10 & 5)

– Drive Bays :
2 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays *
1 x Internal 2.5″ drive bay
1 x Optional internal 5.25” to 3.5”/2.5” drive cage

– Installed Hard Drives : 1TB 7.2K Entry SATA 3.5in Hard Drive
– Network : 2 x Intel I210-AT Gigabit LAN

– Expansion Slots :
1 x PCIe x16 slot (Gen4 x16/x8 link)
1 x PCIe x8 slot (Gen4 x0/x8 link)
2 x PCIe x8 slot (Gen3 x4 link)

– Graphic : Aspeed AST2600 64MB
– Installed Operating System : None
– Internal Optical Drive : DVD+/-RW, SATA, Internal
– Power Supply : Single, Cabled Power Supply, 300W
– Management Solution Software : ASMB10-iKVM for KVM-over-IP
– Accessories : Keyboard and Optical Mouse, USB; Power Cord
– Warranty : 3Yr Next Business Day Service
