Deskripsi

LAN Tester DIGITAL SC8108 – DIGITAL LAN Tester CAT5e

Spesifikasi

SC8108 CAT5 RJ45 Network LAN Length Cable Tester Meter Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R).
LCD: 4 x 16 characters (visible dimension: 61.6 x 25.2 mm)
Application: STP / UTP twin twisted cable.

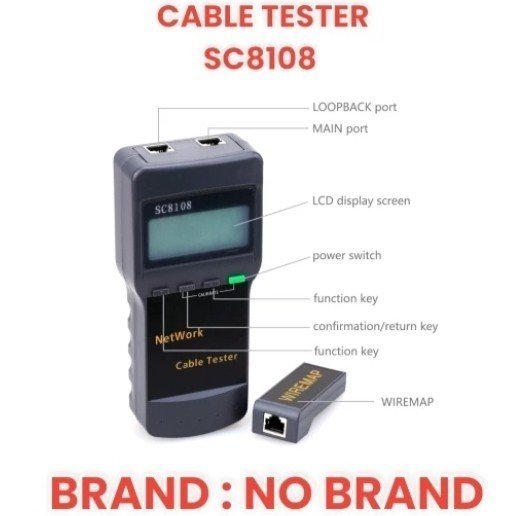

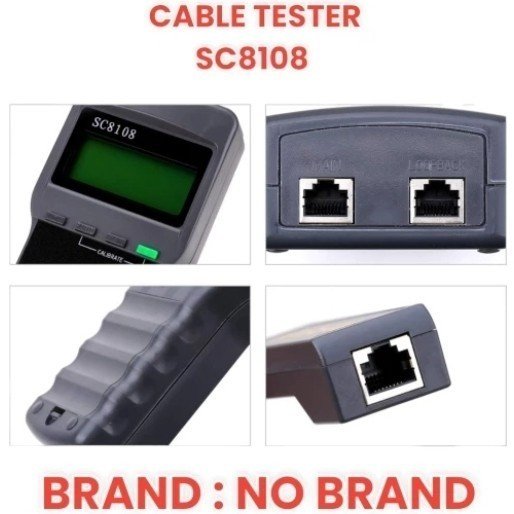

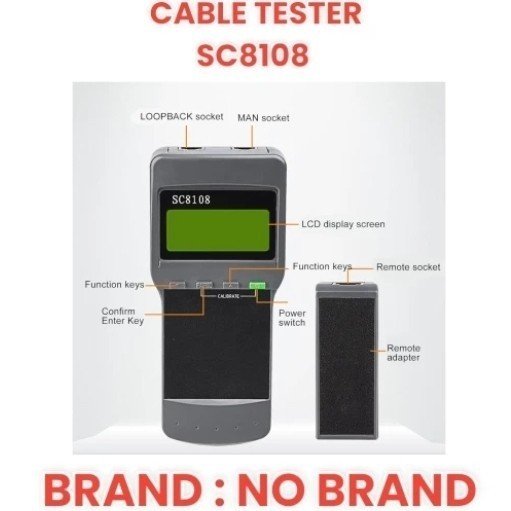

Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
Length measurement of twin twisted cable:
Scope : 1350M (31,200 FT).
Calibration accuracy : 3% ( 0.5m or 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy : 5% ( 0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)
Display : M or FT
Length calibration: User can set calibration factor by himself by a given length cable.
The length of calibrating cable is more than 5m.
Working temperature: -10C to 60C
Powered by 4 AA batteires (NOT included)
Dimension: 180 x 80 x 40 mm

ISI KEMASAN/PAKET
1 X Network tester
1 X User manual

FUNGSI PRODUK
1. Mudah dioperasikan
2. Memeriksa kesalahan kabel dari 5E & 6E kabel,
3. Hubung singkat, kawat jumper, membalikkan koneksi dan cross-talk gangguan
4. Cari lokasi kabel atau koneksi error
5. Mengukur panjang kabel, dan menemukan lokasi sirkuit terbuka dan sirkuit pendek.
