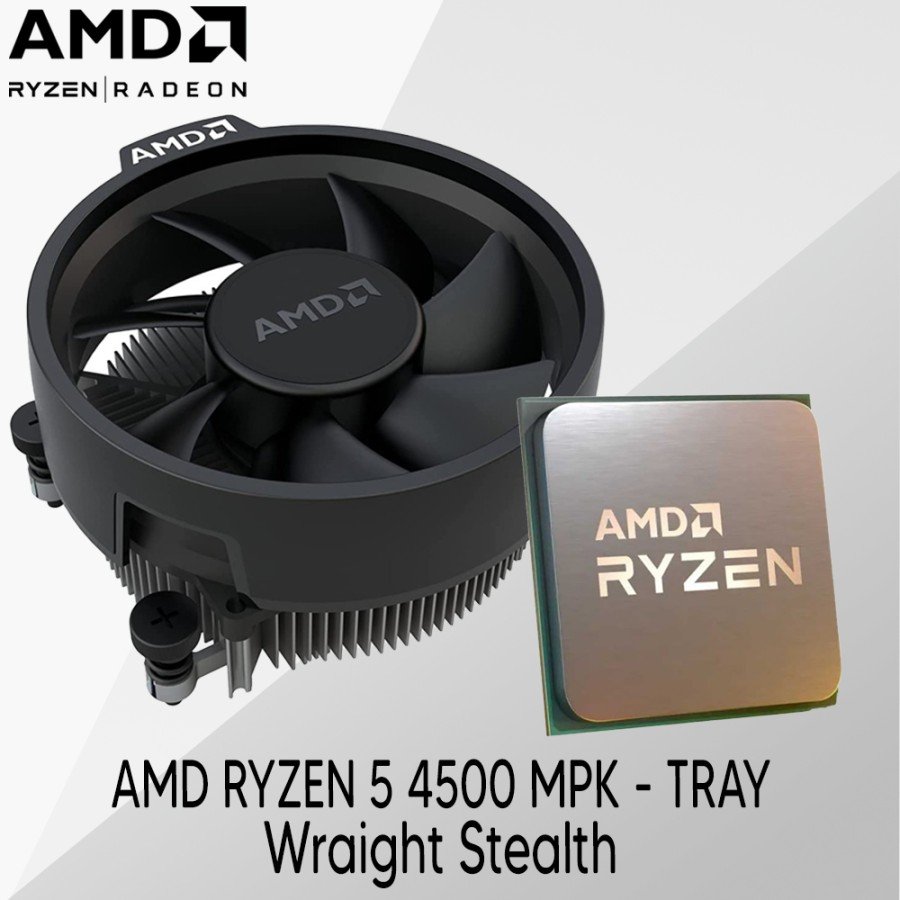

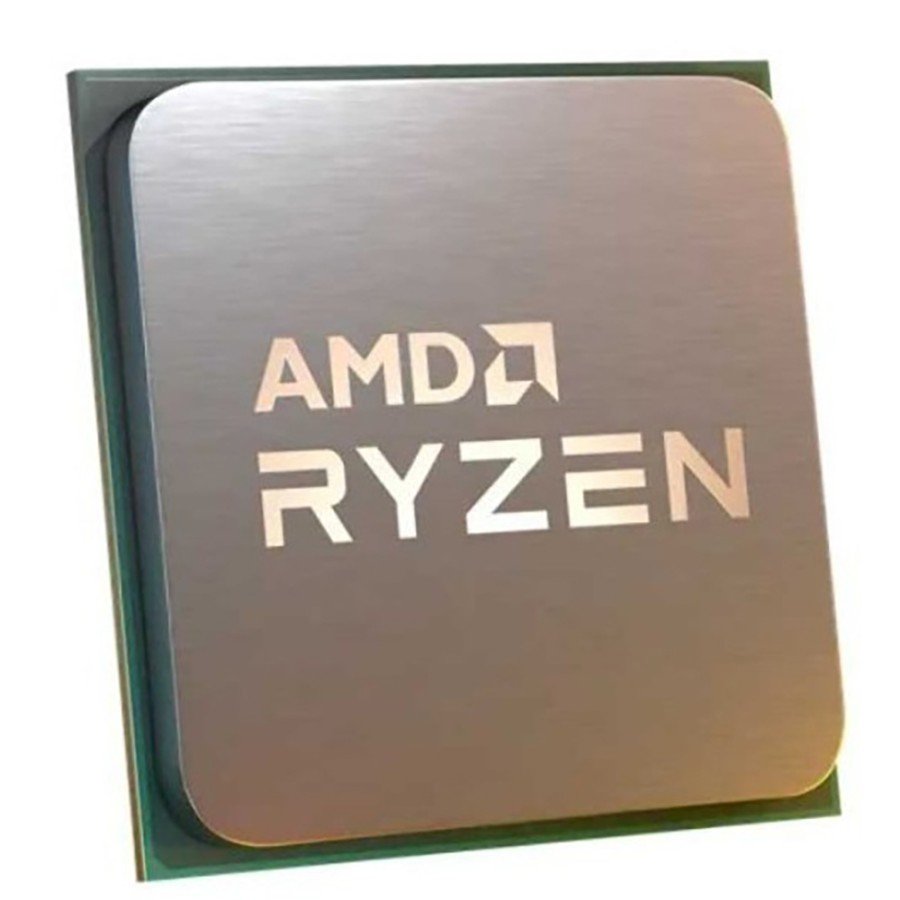

Asus Motherboard AMD CPU RYZEN 5 4500 TRAY

Asus Motherboard AMD CPU RYZEN 5 4500 TRAY

Asus Motherboard AMD CPU RYZEN 5 4500 TRAY

General Specifications
– Platform : Desktop
– Market Segment : Mainstream Desktop
– Product Family : AMD Ryzen™ Processors
– Product Line : AMD Ryzen™ 5 Desktop Processors
– Consumer Use : Yes
– Former Codename : “Renoir”
– Architecture : “Zen 2”

DESKRIPSI:

General Specifications
– Platform : Desktop
– Market Segment : Mainstream Desktop
– Product Family : AMD Ryzen™ Processors
– Product Line : AMD Ryzen™ 5 Desktop Processors
– Consumer Use : Yes
– Former Codename : “Renoir”
– Architecture : “Zen 2”
– # of CPU Cores : 6
– Multithreading (SMT) : Yes
– # of Threads : 12
– Max. Boost Clock : Up to 4.1GHz
– Base Clock : 3.6GHz
– L1 Cache : 384KB
– L2 Cache : 3MB
– L3 Cache : 8MB
– Default TDP : 65W
– Processor Technology for CPU Cores : TSMC 7nm FinFET
– CPU Compute Die (CCD) Size : 180mm²
– Package Die Count : 1
– Unlocked for Overclocking : Yes
– CPU Socket : AM4
– Socket Count : 1P
– Supporting Chipsets :
* X570
* X470
* X370
* B550
* B450
* B350
* A520
* A320

– CPU Boost Technology : Precision Boost 2
– Instruction Set : x86-64

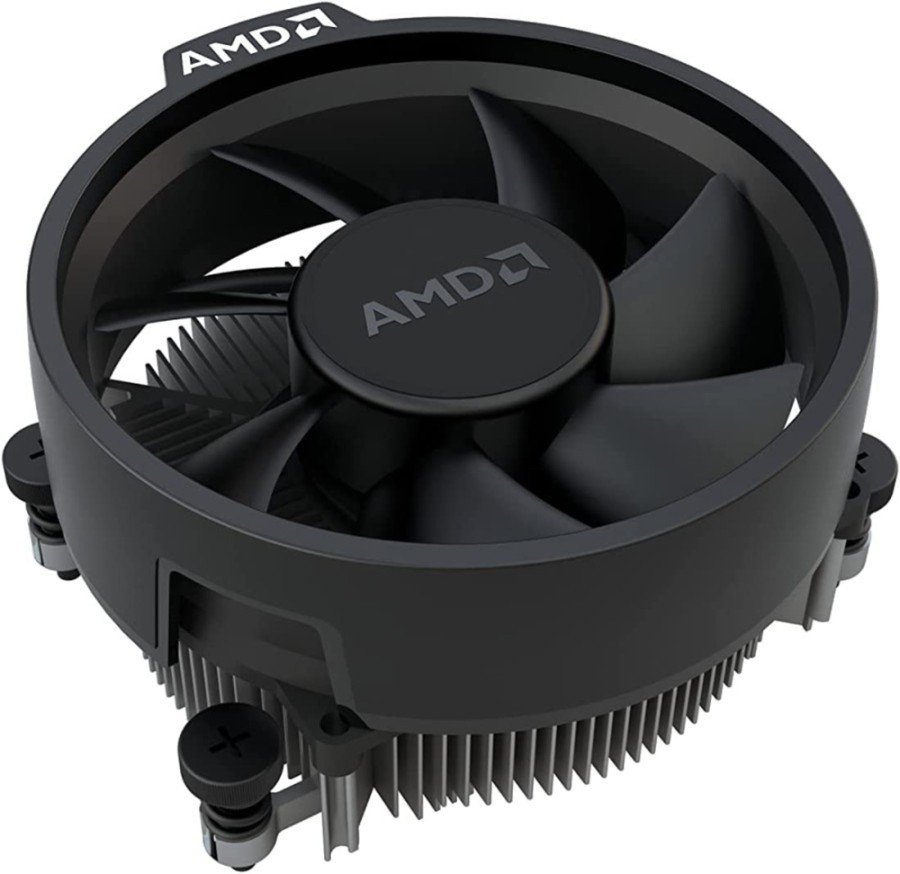

– Thermal Solution (PIB) : AMD Wraith Stealth
– Max. Operating Temperature (Tjmax) : 95°C
– PCI Express® Version : PCIe 3.0
– System Memory Type : DDR4
– Memory Channels : 2
– Max. Memory : 128GB
– System Memory Subtype : UDIMM
– System Memory Specification : Up to 3200MHz
– Max Memory Speed
* 2x1R : DDR4-3200
* 2x2R : DDR4-3200
* 4x1R : DDR4-2933
* 4x2R: DDR4-2667
– Integrated Graphics : No
– Graphics Model : Discrete Graphics Card Required
