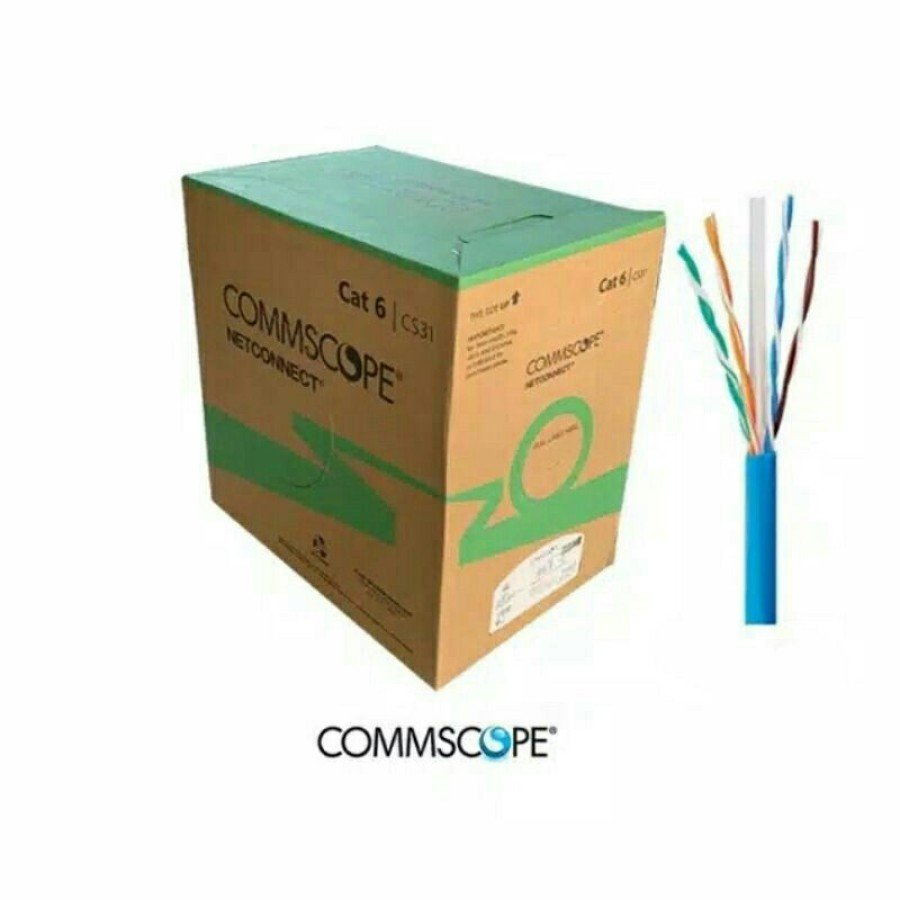

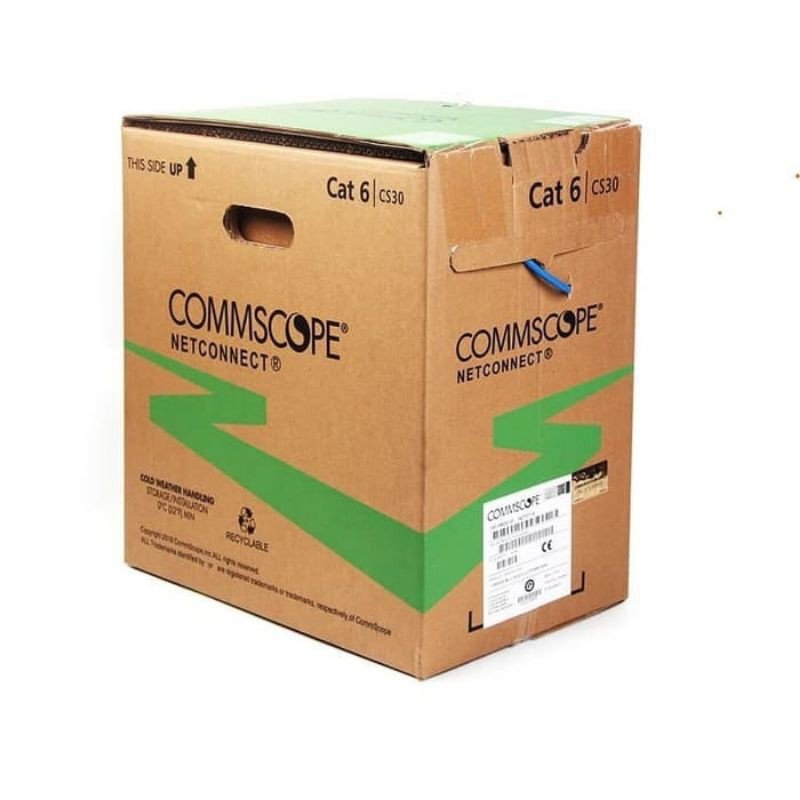

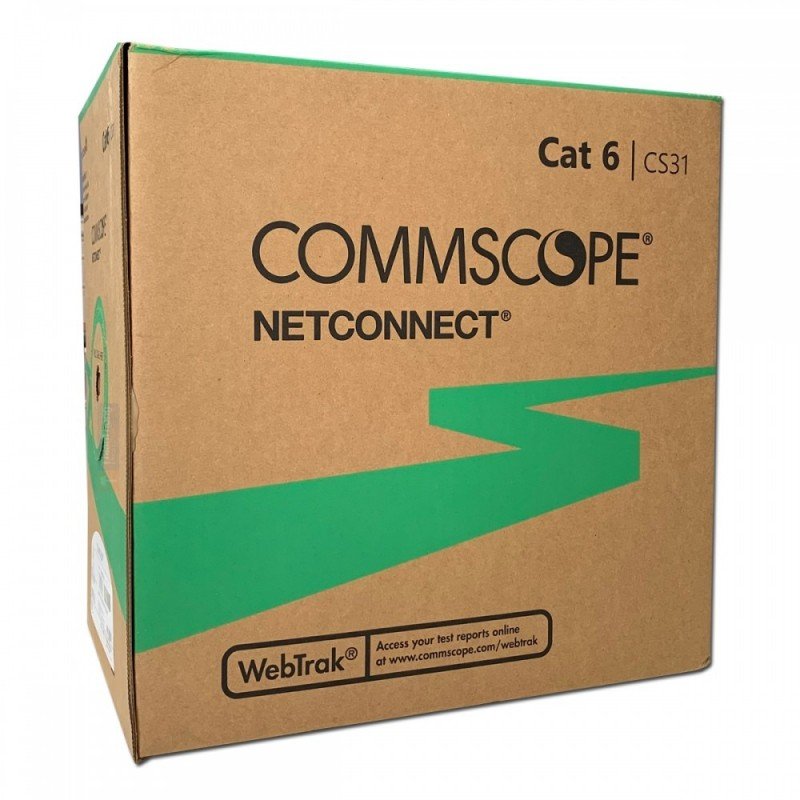

Kabel UTP AMP Commscope Cat6
Rp1.982.000,00
Conductors 24 AWG solid bare copper
Insulation Polyethylene, 0.037 in nom dia
Jacket FR PVC,CM
Filler Polyethylene
Electrical Characteristics
Impedance 100 15%, 1 MHz to 250 MHz
Kabel UTP AMP Commscope Cat6
Deskripsi :
Kabel Ethernet/LAN UTP Cat 6 Original
Materials :
Conductors 24 AWG solid bare copper
Insulation Polyethylene, 0.037 in nom dia
Jacket FR PVC,CM
Filler Polyethylene
Electrical Characteristics
Impedance 100 15%, 1 MHz to 250 MHz
Propagation delay 536 ns/100 m max. @ 250 MHz
Skew 45 ns/100 m max. @250 MHz
Mutual capacitance 5.6 nF max/100 m
Conductor resistance 66.58 max/1000 m
Mechanical Characteristics
Bend radius The minimum bending radius is 8x outside diameter during installation and 4x
the outside diameter after installation 1″
Operating temperature -20C to 60C
Storage temperature -20C to 80C
Approvals
UL File Number E138034
ETL Certificate 3162341CRT-001
RoHS Compliant
Note :
Merk AMP / COMMSCOPE
Harga yg tertera adalah 1 roll
100% ORIGINAL
BARANG READY
